MS & Stainless Steel Angles, Channels & Beams Supplier in Mumbai

Moltenium Power Steels is a supplier, stockist and dealer of MS structure and SS angles, flat bars and channels in Mumbai. From industrial sheds to bridges, our structural steel stock — channels, angles and beams in MS and stainless grades — serves fabricators and construction contractors across Mumbai and Maharashtra. Our MS structural range includes U, Z, C, Hat and J channel profiles alongside universal beams for primary structural spans, while our SS angles and channels cover grades 201 through 904L, plus duplex and super duplex for corrosion-resistant applications common in coastal Mumbai construction. We publish detailed weight-per-metre charts across our full size range, helping contractors and estimators calculate accurate project tonnage before ordering. As a local Mumbai supplier, stockist and dealer, we keep structural steel projects on schedule with same-city delivery, avoiding the transport delays that come with sourcing from steel hubs outside Maharashtra

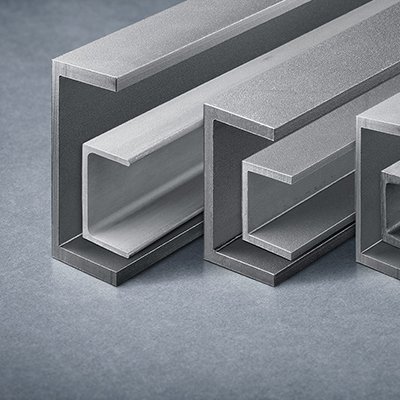

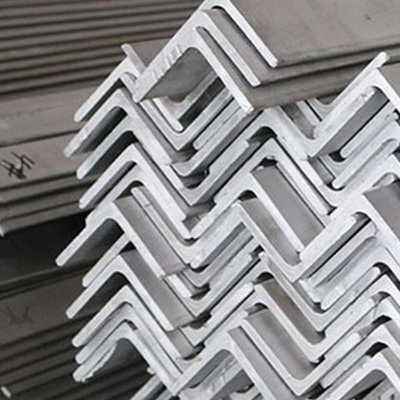

Steel angles and channels are types of steel components utilized in construction and engineering projects. Steel angles have an L-shaped design which serve as crucial support and brace. Channels on the other hand have a C-shape which can be used for beam and column support, framing, and mounting. They are both made from high-strength steel which makes them durable and long lasting. A universal beam has an ‘I’ cross section with its main application in the structural frames of industrial sheds and large buildings. They experience tensile, sheer, and compressive stresses internally. They are also used in the construction of bridges.

While these angles, channels, and beams are available in many different types, sizes, and specifications, an estimate is provided below. In order to get exact details and rates, contact our trained team.

Channel & Angle Product Description

Types of Channels

U Channels, Z Channels, C Channels, Hat Channel, J Channel

Types of Angles

Equal Angles, Unequal Angles, and Bulb Angles

Grade

201, 202, J3, 303, 304, 304L, 304LN, 304H, 309, 310, 316, 316L, 316LN, 316H, 316TI, 317, 317L, 317LN, 321, 321H, 347, 347H, 904, 904L, Duplex & Super Duplex (SA240 UNS NO. S31803, S32205, S32550, S32750, S32760), SMO 254, 17-4PH, Alloy 20, and more grades as per requirement.

Specifications

ASTM: B-16.11, B-16.9, B-16.28 & MS SS P43
DIN: 2527, 2576, 2633, 2634, 2642

Surface Finish

Painted, Hot-dip Galvanized, and Black (Unfinished)

Applications

Industrial Sheds, Large Buildings, Bridges, Roof Supports, Trailers, and more.

Channel Sizes & Weight (Kg/m)

Size (mm)	Weight (Kg/m)	Size (mm)	Weight (Kg/m)
75 x 40	7.1	200 x 75	22.3
100 x 50	9.6	250 x 80	30.6
125 x 65	13.1	250 x 82	34.2
150 x 75	16.8	300 x 90	36.3
175 x 75	19.6	400 x 100	50.1

Beam Sizes & Weight (Kg/m)

Size (mm)	Weight (Kg/m)	Size (mm)	Weight (Kg/m)
100 x 70	11.5	225 x 110	31.2
120 x 58	11.2	250 x 125	37.3
125 x 70	13.2	300 x 140	46.0
150 x 75	15.0	350 x 140	52.4
150 x 150	37.1	400 x 140	61.5
175 x 85	19.5	450 x 150	72.4
200 x 100	25.9	500 x 180	86.9
200 x 150	52.05	600 x 210	123.0

Angle Sizes & Weight (Kg/m)

Size mm / Thickness	3	4	5	6	8	10	12	16	18	20	25
20 x 20	0.9	1.1
25 x 25	1.1	1.4	1.8	2.2
30 x 30	1.4	1.8	2.2	2.8
35 x 35	1.6	2.1	2.6	2.8
40 x 40	1.8	2.4	3.0	3.5
45 x 45	2.1	2.7	3.4	3.5
50 x 50	2.3	3.0	3.8	4.5
65 x 65			4.9	5.8	7.7	9.4
75 x 75			5.7	6.8	8.9	11.0
80 x 80				7.3	9.6	11.8	14.0
90 x 90				8.2	10.8	13.4	15.8
100 x 100				9.2	12.1	14.9	17.7
110 x 110					13.4	16.5	19.6	24.2
130 x 130					15.9	19.7	23.4	28.9
150 x 150						22.8	27.2	35.8	39.9	11.1
200 x 200							36.6	48.5	54.0	60.0	73.6
